Introduction

Coolseer WiFI human presence sensor is used to detect if have human in the detected area. When the sensor is triggered, sensor will send message to the App. It could also trigger other devices like light, home application, siren and so on.

Parameters

1. Model: COL-HPS01W

2. Input: USB 5V

3. Working temperature: -20℃~+70℃

4. Sensitivity: 1-9(default 7)

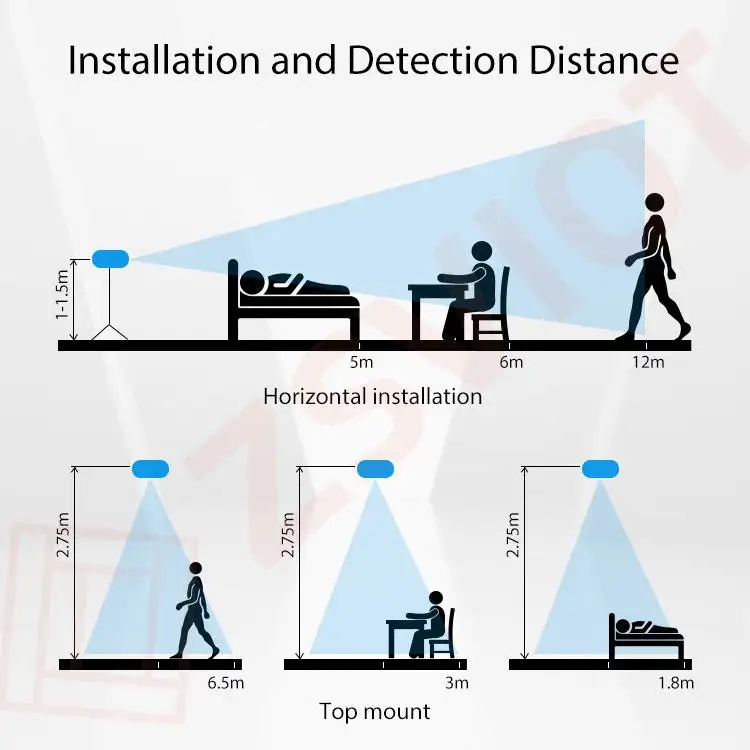

5. Sensing distance: 0.3-9m(Default 6m)

6. Illuminance Sensor: 0-2000 LUX

7. Target detection confirmation time:0-10s

8. Target disappearance delay time:10-1500s

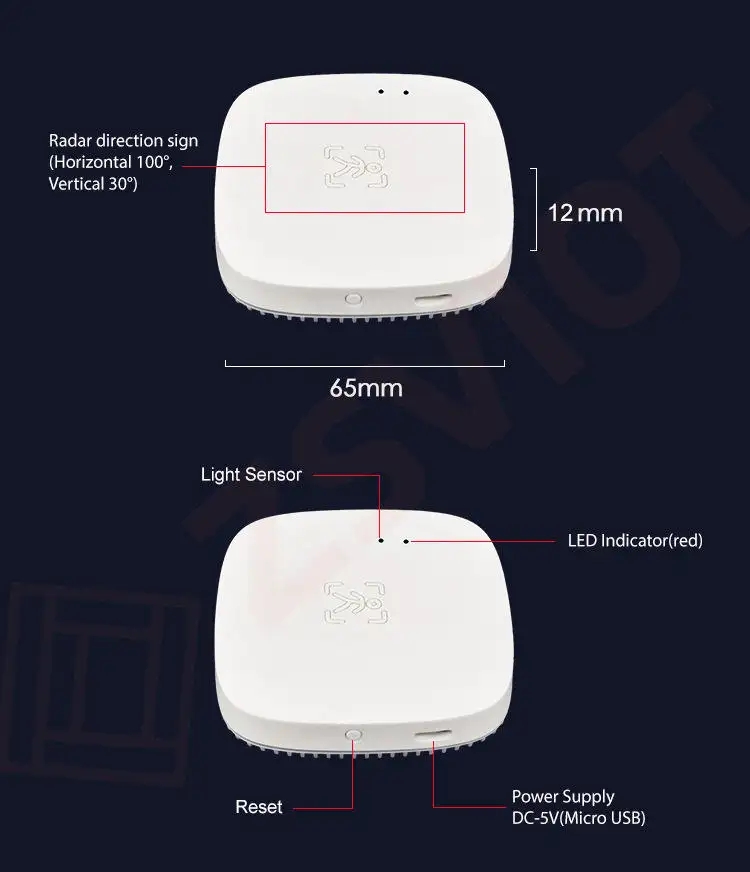

9. Sensitive angle: horizontal 100°, vertical 30°

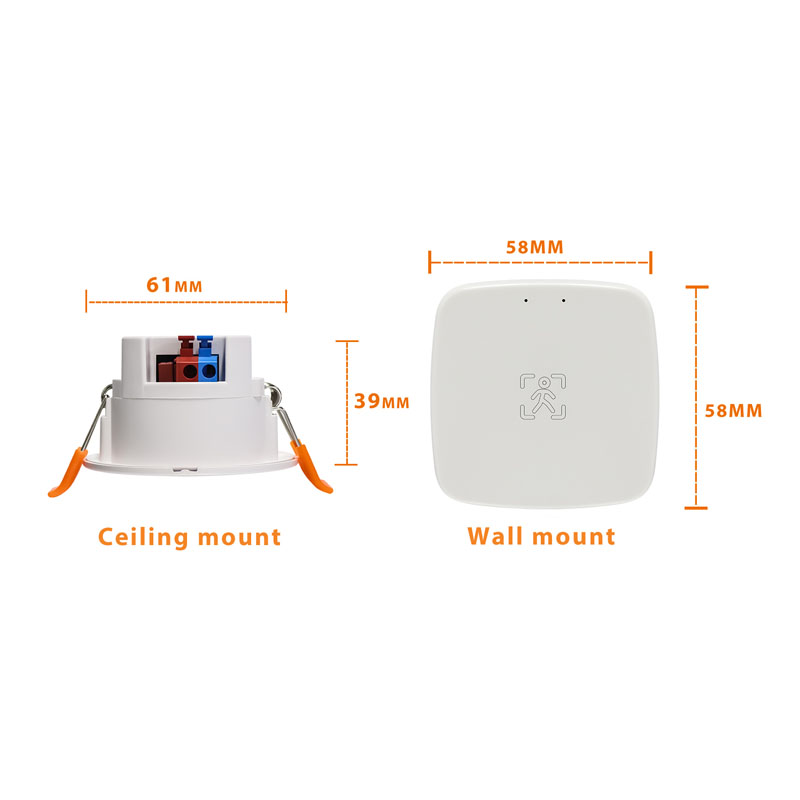

10. Size: 58mm*58mm*11mm

11. Feature: human motion detection and human fretting detection
